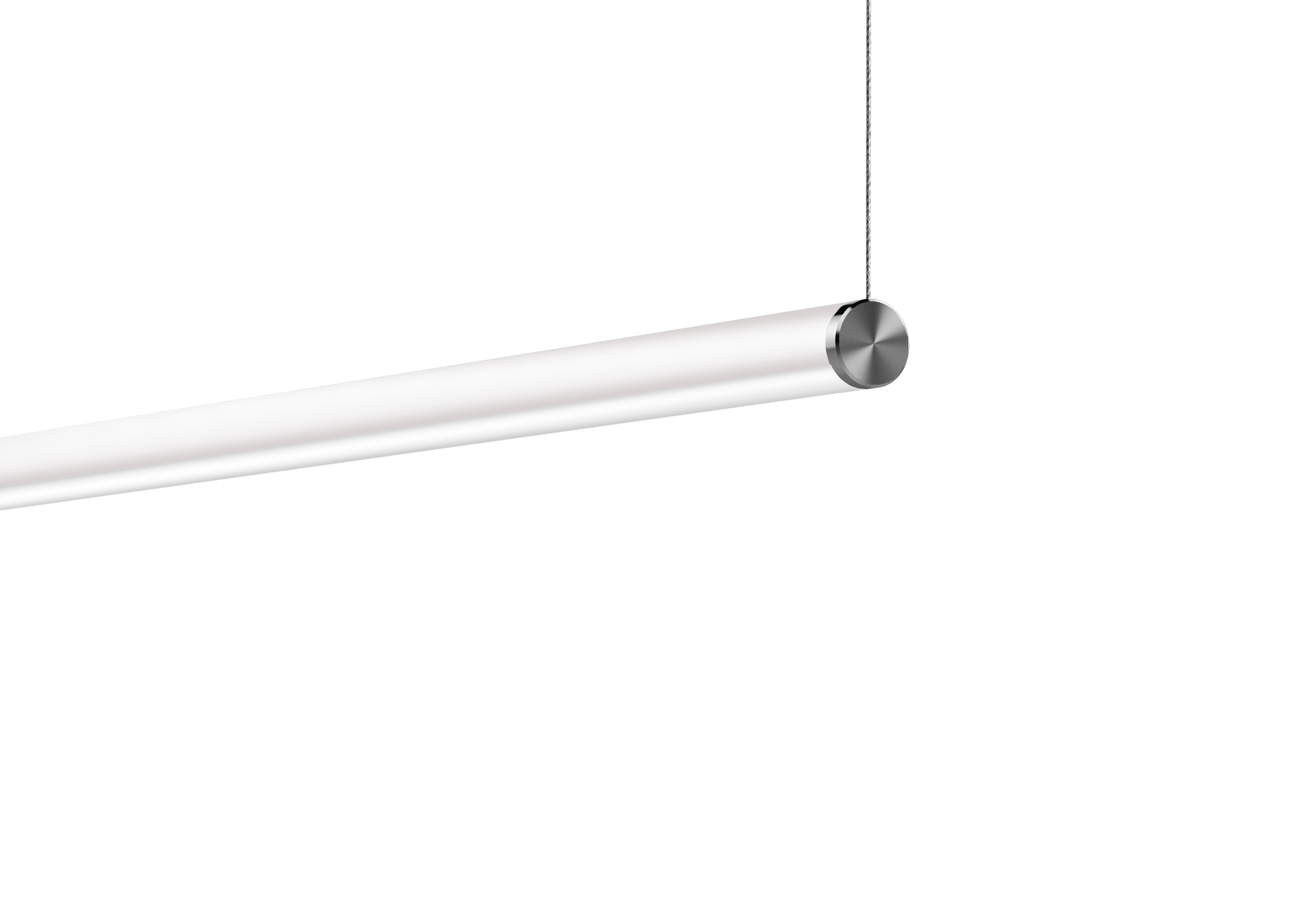

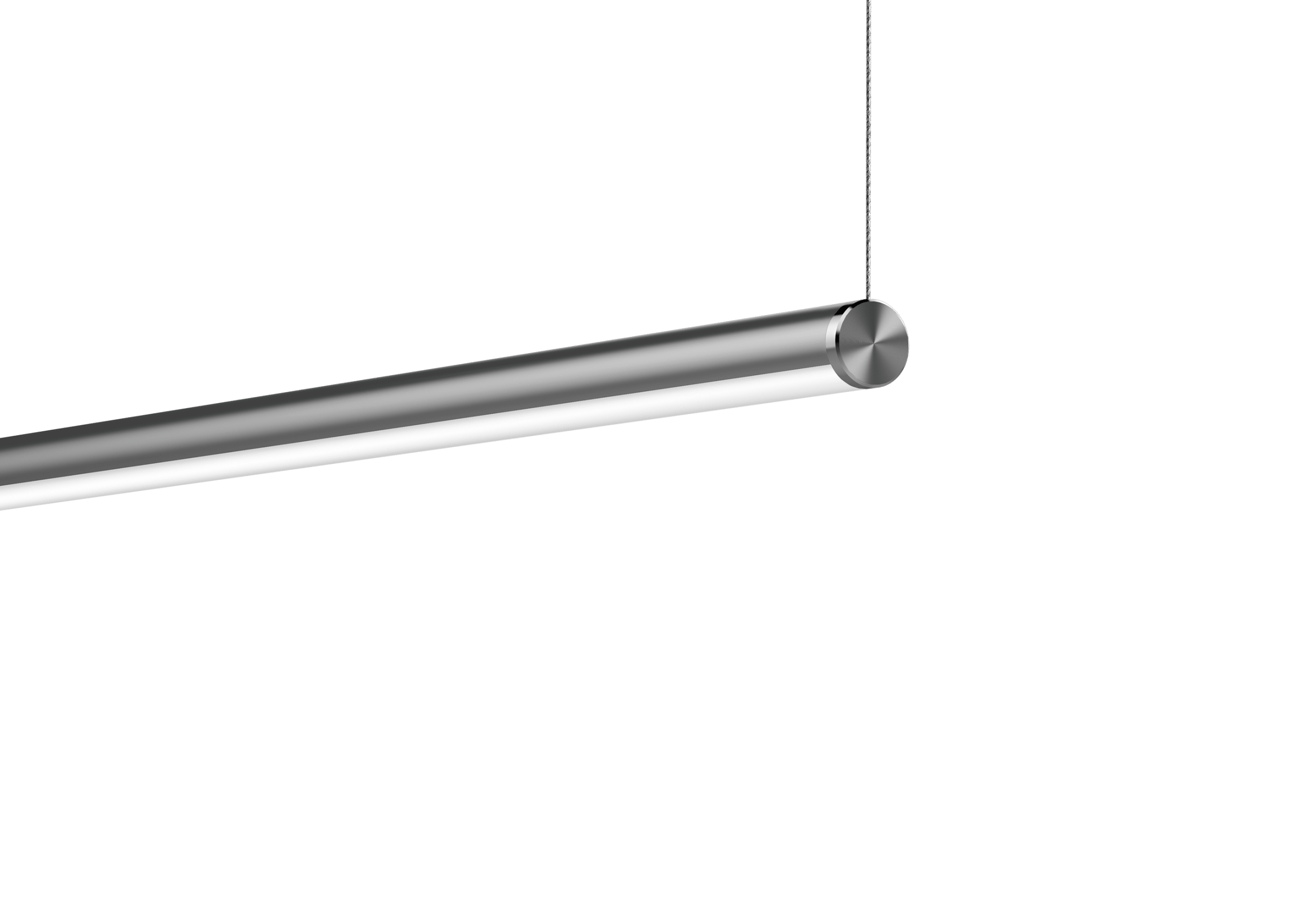

Oxygen 1

Infused with Circadian Blue technology, Oxygen 1 is tuned for humans. It provides the right blue light at the right time for health and well-being. Maintaining the clean simplicity and balanced proportions of the entire Oxygen series, this housing offers greater versatility and efficacy.

Light Circadian Blue
Color
RAL custom finishes available
Mounting
Variations
1 Hr Customization, Customize it, We will contact you within 1 hour

Oxygen 1 Specifications

Oxygen 1 Circadian specifications are different from the standard Oxygen 1 options. Please see specification sheet below for more details.

  • Optics options:
    • Flood
  • Tunablility*:
      • Warm Dim
      • Tunable White

    *(Some continuous run permutations of this model that require multiple drivers per luminaire section, may not be compatible with tunable options. Contact factory for more info.)

  • Powered Suspension System (PSS)
  • Standard 0-10V dimming to 1%
  • Wattage and lumen package options @ 4000K:
    • 4W / 544Lm/LF
    • 6W / 762Lm/LF
    • 8W / 1009Lm/LF
    • 10W / 1214Lm/LF
    • 12W / 1464Lm/LF
  • Efficacy up to 136Lm/W
  • CCT range: 2700K, 3000K, 3500K, 4000K and 5000K
  • Remote Driver
  • Multiple mounting options:
    • Cable Suspended
    • Cable Suspended Rotational
    • Rotational Arm Mount
  • Light Distribution:
    • Direct, Indirect, 360° Rotational
  • Dimensions: 1-3/8″ Round Profile

Oxygen 1 Circadian Specifications

    • Optics options:
      • Flood
    • Tunability:
      • Controls DALI DT8
    • DALI DT8 digital dimming down to 1%
    • Wattage and lumen packaging options @ 2700K and 4000K
      • See Circadian spec sheet for specific lumen wattage.
    • Efficacy up to 124 lm/w
    • CCT range: 2700K-4000K
    • Light Distribution:
      • Direct

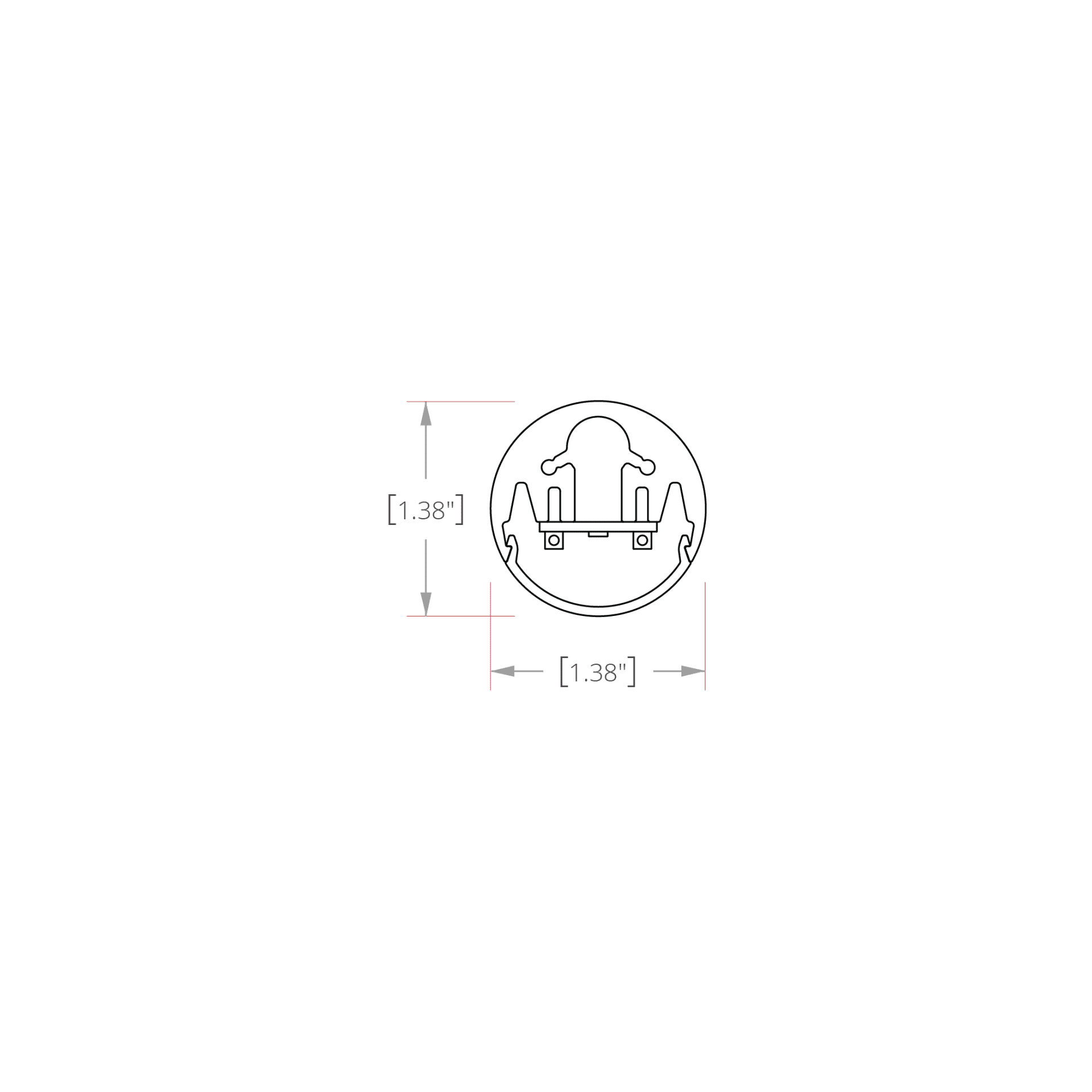

Oxygen 1 Line Drawing

Most permutations of this SKU ship within 2 weeks. To determine if your specific permutation qualifies, fill in the order blocks on your product specification sheet. If there are no italicized options among your selections, the SKU is available for 2-week shipping.

Additionally, we now have a Lumium On Demand model matrix available here

Mounting Options

Cable Suspended

Cable Suspended

3/64” aircraft cable suspension system. Fixtures can be static down-lights: Direct, static up-lights: Indirect, or Rotational (see CSR below). Standard and custom power cord finishes, sleeve options, and canopy colors offer options to match almost any space. Stainless steel cables come in various lenghts (4’ is standard) and are field adjustable.Oxygen

Cable Suspended Rotational

Cable Suspended Rotational

Using a similar setup to the Cable Suspended system above, the Cable Suspended - Rotational system has 360 degree rotational capcity with mechanical fasteners to lock fixtures in place if desired. This system offers incredible flexibility, light direction control, and a dynamic aesthetic.

Rotational Arm Mount

Rotational Arm Mount

This system uses 1/2” to 5/8” diameter aluminum arms and subtle details in combination with 360° rotational capacity to create some of the most versatile linear fixtures in the architectural market. Standard mounting uses 3-O mud rings (supplied by others) or a 1” optional trim ring for furniture mounted applications. Engineered with no visible fasteners, smooth rotation, and mechanical locking, the RAM system reveals an impressive aesthetic with exceptional versatility.

Canopy Options

Standard (44 Canopy Option)

44 Canopies have two standard options to suit various environment aesthetics. The standard cable suspension system has two 4 – 1/4” canopies with the options of Satin White (SW) or Matte Black (MB) Finishes. These Canopies can also have a Machine Finish for a more striking look. This option does carry a higher cost than standard canopies, but also has an impressive appearance.

Standard (44 Canopy Option)

Custom

Custom canopies options are available and can look as spectacular in certain applications. Contact the factory with all custom requests or with any question.

Custom

Powered Suspension System

Lumium’s Powered Suspension System (PSS) eliminates traditional thick power cables, creating a clean and uncluttered aesthetic that compliments smaller sized luminaire profiles.

Low Voltage class 2 power is carried from remote drivers through a thin 1/8” dual-conductor coaxial suspension cable. The minimal design opens up a new element of creative freedom.

Powered Suspension System

Zero Canopy Options

Zero Canopy is Lumium’s exclusive suspension mounting method to eliminate all visual distractions on the ceiling plane. When used with non-powered aircraft suspension cable, or with our Powered Suspension System (PSS) and remote driver, Lumium’s Zero Canopy option eliminates the need for a thick canopy cover by ingeniously hiding the height-adjustment gripper and electrical connections behind a thin 2-1/4” magnetized access panel. Paint the panel to match the ceiling to create a simple, elegant luminaire suspension system with no visible hardware. Attaches to a standard 4” j-box. Available for hard top mud-in ceilings up to 3/4” thick, as well as suspended ceilings from 1/4” – 1-1/2” thick.

ACT (2ACT)

Zero Canopy ACT
ACT Canopy Line Drawing

Lumium’s Zero Canopy option for suspended and acoustic ceilings is a clever solution for removing distracting visible mounting hardware from the ceiling plane. The 2ACT ceiling tile version includes a thin 2-1/411 magnetized access panel, which hides any electrical connections and included height-adjustment gripper. A threaded piston adjusts to accommodate various installation applications and ceiling thicknesses, even thin metal substrates. Conceal the access panel by painting-to-match the rest of the ceiling, or add a custom finish for a pop of color. Tooless entry. Attaches to a standard 4” j-box. Specify access panel finish. Accepts standard aircraft cable or PSS powered suspension cable system only. Do not use 2ACT for line voltage power drop locations.

MUD-IN (2MIC)

Zero Canopy MUDIN
MUD-IN Canopy Line Drawing

Lumium’s Zero Canopy option for mud-in ceilings is an ingenious method for removing all visible hardware from the ceiling plane. The 2MIC mud-in version includes a built-in 1/2 11 flange with a flush 2-1/411 magnetized access panel which hides any electrical connections and included height-adjustment gripper. Conceal the access panel by painting-to-match the rest of the ceiling, and eliminates all visual distractions from suspension hardware. Tooless entry. Attaches to a standard 4” j-box. Specify access panel finish. Accepts standard aircraft cable or PSS powered suspension cable system only. Do not use 2MIC for line voltage power drop locations.

ACT (2ACT)

Zero Canopy ACT
ACT Canopy Line Drawing

Lumium’s Zero Canopy option for suspended and acoustic ceilings is a clever solution for removing distracting visible mounting hardware from the ceiling plane. The 2ACT ceiling tile version includes a thin 2-1/411 magnetized access panel, which hides any electrical connections and included height-adjustment gripper. A threaded piston adjusts to accommodate various installation applications and ceiling thicknesses, even thin metal substrates. Conceal the access panel by painting-to-match the rest of the ceiling, or add a custom finish for a pop of color. Tooless entry. Attaches to a standard 4” j-box. Specify access panel finish. Accepts standard aircraft cable or PSS powered suspension cable system only. Do not use 2ACT for line voltage power drop locations.

MUD-IN (2MIC)

Zero Canopy MUDIN
MUD-IN Canopy Line Drawing

Lumium’s Zero Canopy option for mud-in ceilings is an ingenious method for removing all visible hardware from the ceiling plane. The 2MIC mud-in version includes a built-in 1/2 11 flange with a flush 2-1/411 magnetized access panel which hides any electrical connections and included height-adjustment gripper. Conceal the access panel by painting-to-match the rest of the ceiling, and eliminates all visual distractions from suspension hardware. Tooless entry. Attaches to a standard 4” j-box. Specify access panel finish. Accepts standard aircraft cable or PSS powered suspension cable system only. Do not use 2MIC for line voltage power drop locations.
